Four Side Seal Suction Tube Packaging Machine PPD-STP80

Four Side Seal Suction Tube Packaging Machine » PPD-STP80

Pictures available of Four Side Seal Suction Tube Packaging Machine:

PPD-STP80

Four Side Seal Suction Tube Packaging Machine

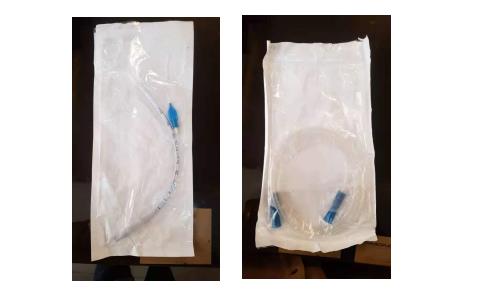

Four side seal suction tube packaging machine is specially designed for the packaging of infusion set with burette, theracheostomy tube with cuff,suction tube,nelaton catheter,suction catheter,urine bag, infusion set,medical scissors,medical forceps,medical tweezers,gauze pad etc.

Enquiry Now

Four Side Seal Suction Tube Packaging Machine Details

Four side seal suction tube packaging machine is specially designed for the packaging of infusion set with burette, theracheostomy tube with cuff,suction tube,nelaton catheter,suction catheter,urine bag, infusion set,medical scissors,medical forceps,medical tweezers,gauze pad etc.

Features:
1. Chinese-English two language display,colorful touch screen operate, servo drive system and PLC program control for easy convey the goods.
2. Independent guide column type mold base and mobile synchronous heat sealing system, the sealing surface temperature is more uniform, more stable.
3. The packaging materials of different thickness and different materials have wider adaptability.

Machine data:
Name:Four Side Seal Suction Tube Packaging Machine
Bag size:L:20-100cmxW:10-50cm adjustable
Packing film outer diameter:≤350mm
Packing film width:≤520mm
Production speed:60-80 bags/min
Motor power: 2.2kw
Heater power:3.3kw
Voltage:220V,50hz
Noted:Different specs can be customized.
