Fully Auto 4 Lanes Alcohol Pad Packaging Machine PPD-2R280-1PLY

Fully Auto 4 Lanes Alcohol Pad Packaging Machine  » PPD-2R280-1PLY

Pictures available of Fully Auto 4 Lanes Alcohol Pad Packaging Machine :

PPD-2R280-1PLY

Fully Auto 4 Lanes Alcohol Pad Packaging Machine


Fully auto 4 lanes alcohol pad packaging machine is main design for packaging of alcohol pad,alcohol prep pad,alcohol swabs,alcohol wipes,BZK antispetic swabs etc.


Enquiry Now

Fully Auto 4 Lanes Alcohol Pad Packaging Machine Details

Fully auto 4 lanes alcohol pad packaging machine is main design for packaging of alcohol pad,alcohol prep pad,alcohol swabs,alcohol wipes,BZK antispetic swabs etc.

Production procedure:
Non-woven cloth load o the machine→folding→cutting→adding alcohol liquid→into the bags→making the bags→sealing the bags→cutting→sealing into final product.

Features:
1. XINJE color touch screen, PLC control system, servo motor, intelligent equipment, man-machine dialogue, superior performance, simple operation.
2. Four sides sealing bag making, packing sealing system, two row bag making, two times sealing bag making, no leakage.
3. All stainless steel non-woven fabric unwinding, folding, slicing mechanism, product cleaning up to medical standards.
4. Adjustable liquid volume quantitative perfusion system.
5. Longitudinal intelligent photoelectric trademark positioning system.

Technical Data:
Name:Fully Auto 4 Lanes Alcohol Pad Packaging Machine
Model:PPD-2R280-1PLY
Suitable wet pad material:in roll, 30-60g/,water-sting non-woven cloth,diameter≤600mm, width 60mm
Suitable packing material:in roll, 70-110g/,aluminum foil for alcohol prep pad,width 400mm
Raw material paper core inside diameter:76.2mm (3inch)
Nonwoven unfolded size: 30mm

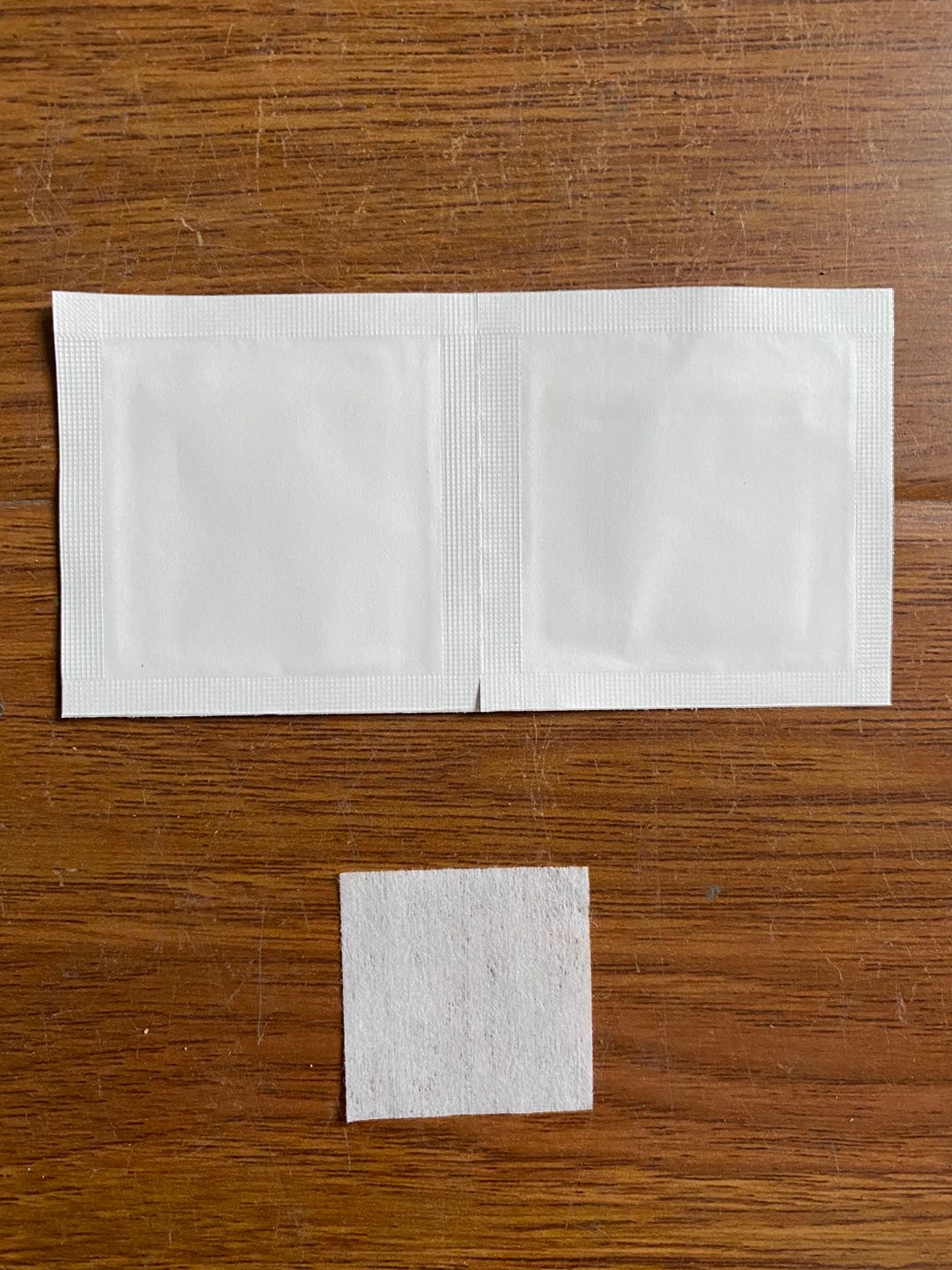

Pad size:L 30mm × W 30mm
Packaging size:L50mm × W50mm
Folding method:No fold
Adding liquid:accurate amount can be adjusted
Processing ability:240-280pc/min
Total power:220v,50Hz,2.6KW




Fully Auto 4 Lanes Alcohol Pad Packaging Machine (Alcohol Prep Pad Packaging Machine) has been presented above, want more related products, please click the category below.
