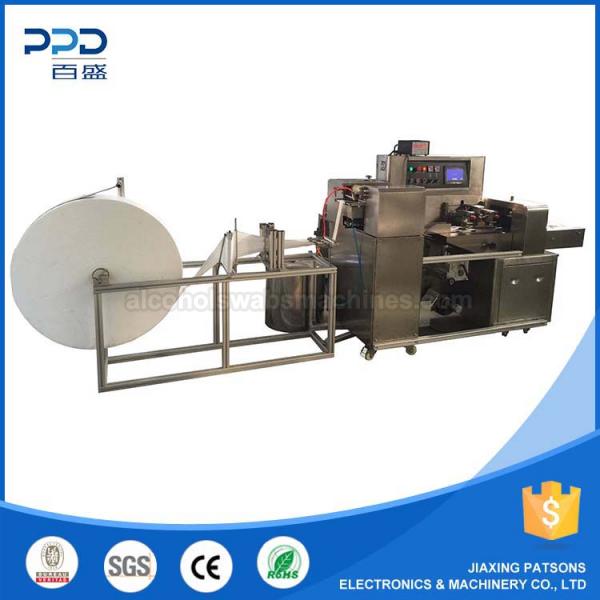

Automatic 3 side seal single serv wipes making machine is conventional model for 3 side sealing wet wipes

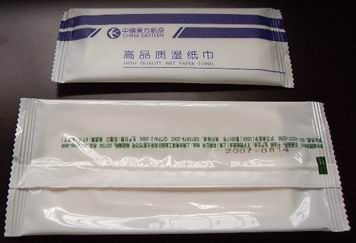

It is the full automatic machinery which can provide single sachet wet wipes,restaruant wipes,ailine wipes,air flight wipes,hand wipes,wet tissue,alcohol wipes etc,
During the production,there is no man power requires from mateiral loading into finished product.
It is controlled by our special technology for PLC Program+Inverter for simple operation,The machine is specialized by the highly full-auto,robster structure,convenient operation,highly speed production

Production process:
non-woven tissue or air-laid paper onto the machine→folding→wetting→cutting→products delivery→automatic packing→ coding(if need)→Finished product.

Technical parameters:
Model: PPD-3SWW
Wipes unfolded size: L140～250 mm × W100×250 mm （Adjustable）
Wipes folded size: L70～125mm×W40～80mm (Adjustable)
Sachet size: L 90～180mm×W 60～125mm(Adjustable)
Packing film type: opp/pe.cpp.al/pe ete
Folding style: Vertical W ,N ,Z shape folds, horizontal fold 1 time
Wetting style: Swiss Made ElectriMagnetic Pump
Material: Plate volume shape, 35-120g/sm,non-woven tissue,air-laid paper
Raw material : Φ≤1200mm width: 100-250mm
Raw material paper core: Φ76.2mm (=3")
Processing ability: 80-120 sachet/minute
Total power: 380v 50hz 3.7 kw
Total Weight: 1500 KG
Machine dimension: 3600×1800×1900mm
Packing dimension: 3900×1900×1900mm
