Automatic four side sealing wet tissue packaging machine PPDWT

close window Click to close window
Automatic four side sealing wet tissue packaging machine » PPDWT

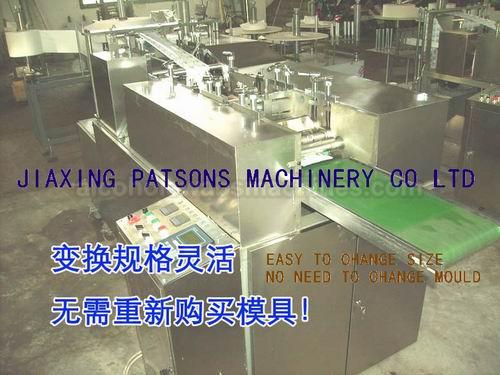

Pictures available of Automatic four side sealing wet tissue packaging machine:

PPDWT

Automatic four side sealing wet tissue packaging machine

Automatic four side sealing wet tissue packaging machine can be used to produce:Computer cleaning wet wipes and medical wet wipes,isopropyl alcohol wet wipes,Aircraft wet wipes,hotel /Restaurant wet tissue,etc.

Enquiry Now

Automatic four side sealing wet tissue packaging machine Details

Brief introduction:

This packing machine is can be used to produce:Computer cleaning wet wipes and medical wet wipes,isopropyl alcohol wet wipes,Aircraft wet wipes,hotel /Restaurant wet tissue,etc.

Production line:

Raw materials onto the machine→6(max 8)folding Longitudinally→3 times folding crosswisely→cutting→spraying→into packages→sealing→cutting→product.

Technical parameters:

Name: wet tissue packaging machine

Model: PPD-WT

Wet tissue unfolded size: L 150X W 200mm(adjustable)

Wet tissue Folded size:L50mm × W 30mm(adjustable)

Bag size: L80mm × W 60mm 2bag/run

Wet tissue way of folding: 6 time folding Longitudinally →3 times folding horizontally

Way of adding liquid: at a certain amount

Processing ability: 100-140 bag/minute

Suitable wet pad material: roll, 40-60g/㎡,spunlace nonwoven cloth and wet strenth paper,Φ≤600mm, width100-200mm

Suitable packing material: roll, 70-110g/㎡,paper aluminum,paper plastic,aluminum plastic and so on,width 70-220mm

Raw material paper core inside diameter: Φ 76.2mm (=3")

Total power: 220v,50Hz,2.2KW

Weight: 800 kg

External dimensions: L4000mm × W1300mm × H1500mm

Packing size: L3500mm × W1600mm × H1800mm

Main dispositions：

1. Intelligent packaging machine controller (bag length settings, photo mark of automatic tracking, counting)

2. Stepper control system.

3. Four-sided seal bag, packing sealing system (dual in bag, seal pattern with reticulate).

4. Temperature control system

5. Wetting system adding liquild at a certain amount

6. Intelligent photoelectric trademark vertical positioning system

7. Packing materials manually horizontally correcting system

8. Non-woven folding and cutting installment

9. Coated stainless steel shield, main contact parts using stainless steel or rust-proof materials

10.Electrical control box (including the control panel, emergency stop switch, conveyor belt-conditioning switches, electrical switches, temperature-controlled instrument panel)

Spare parts：

1. Heater sticks – 6sets

2. Blades – 2sets

3. Knives for cutting membrane – 2sets

4. Knives – 5No’s

5. Thermo elements – 4sets

6. Springs – 10No;s

7. Transport belts – 1No

8. Fuses – 10No’s

9. Electric conduction carbon brush – 10No’s

10. Electrical specifications – 1set

11. Machine’s Manual book – 1

12. Quality certification – 1

13. Maintenance tool kit – 1set

Automatic four side sealing wet tissue packaging machine(Automatic four side sealing wet wipes packaging machine) has been presented above, want more related products, please click the category below.
Category: Four side sealing machine
