Medical dressing packaging machine PPD-MDP

Medical dressing packaging machine » PPD-MDP

Pictures available of Medical dressing packaging machine:

PPD-MDP

Medical dressing packaging machine

Medical dressing packaging machine is an automatic packaign machine to making the different mdecial dressing product.

Enquiry Now

Medical dressing packaging machine Details

 This machine is fully automatic for include every step,dressing forming,gluing,lamination,cutting,and packing into the sachet packet.

The different material for dressing pad is accepted,nonwoven,releasing paper,protective backing,super abosorbent core,absorbent PU foam,optisil silicone wound contact layer etc for different layers of different purpose.

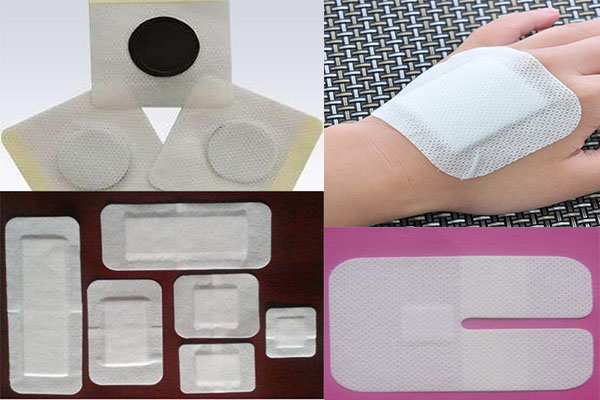

The machine can produce the medical dressing,wound dressing,steriled dressing,foam dressing,nonwoven dressing,IV catheter dressing etc.

Adhesive tape→absorbent pad roll cutting and pasting→isolating paper1.2 compound→roll forming→bag sealing→bag cutting→output packaged product (automatic counting)
The main technical parameters:
Application specifications: Reference 200x100mm
Bag Specifications: Reference 250x150mm
Base tape specifications: Φ ≤ 400mm, width ≤ 220mm, paper core diameter 76.2mm
Processing capacity: 50-100 bags/minute (1 tablet per bag)
[Remarks: Non-packing production speed: 100-260/min]
Total power: 220V, 50HZ, 6KW
Equipment weight: 650 kg
Dimensions: Length 3500×width 900×height 1800mm
Packing size:2200 × 1400 × 1600mm


The different size are accepoted for custmized model.welcome to send your inquiry to us.




Medical dressing packaging machine(wound dressing making machine) has been presented above, want more related products, please click the category below.
Category: Medical dressing machine
