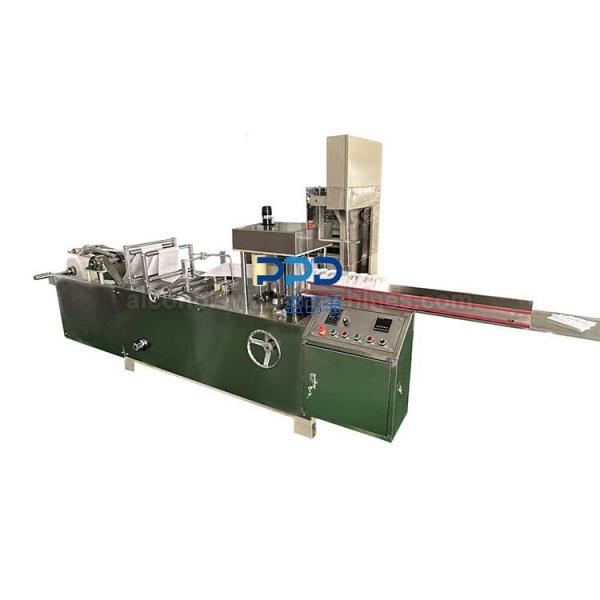

4 fold nonwoven fabric folding machine is mainly used for automatic folding and cutting processing of nonwoven fabric rolls. Machine is mainly automatically folding and cuting of the pre cut nonwoven

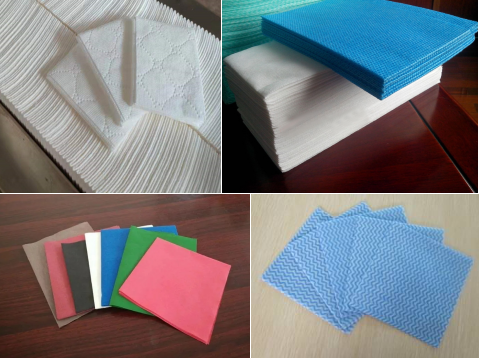

fabric rolls into dry towel products.

Production processing
Nonwoven fabric jumbo roll loading → vertical folding →horizontal folding →cutting → final product

Features:
1. The nonwoven fabric folding machine is designed with a wide belt synchronous conveying device and twotension control devices,ensuring a high precision folding.
2. The driving parts on the non-woven folder cutter come with a combination of multiple gears in order toeliminate gear clearance.
3. The machine table and the parts that touch the nonwoven fabrics are made of stainless steel.
4. The nonwoven folding machine has a compact structure, stable performance and is easy to operate.

Main Data：
Name:4 Fold Nownoven Fabric Folding Machine
Model:PPD-NFM430
Nonwoven size:
Nonwoven Roll Width:430mm
Folded Sheet Size :430x350mm
Fold: 4 fold
Folding device: High precision linear cutting
Applicable materials Roll, 30-50g/m2, wood pulp composite nonwoven
fabric, spunlace nonwoven fabric etc
Raw material width OD≤ 1200mm, width 430mm
Raw material core diameter 3inch
Speed max300pcs/ min
Voltage 380V,50Hz
Total Power 3.2kw
