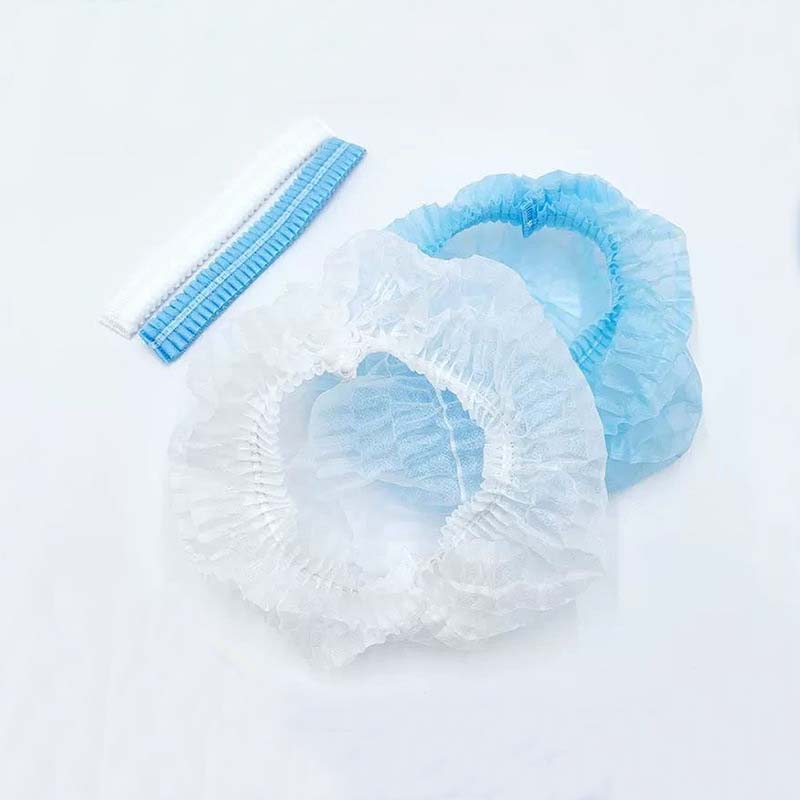

Automatic nonwoven bouffant cap making machine adopts ultrasonic heat sealing method, frequency conversion speed regulation, and produces non-woven materials and plastic film materials. The disposable dust-proof non-woven strip caps are integrated into the finished product from feeding to finished products.
It is a high degree of automation, including feeding, forming, counting, and collecting. Only one person is needed for operation.

Features:
1.It is used with 9~18gsm thick nonwoven fabrics, and 450~480mm wide raw materials. A single machine has multiple functions, and bouffant caps in various specifications, including a length of 18", 19", 20", and 21", can be produced simply by replacing molds.
2.With touch-operated panel and PLC system
3.Machine adopts continuous feeding material operation method , with ultrasonic welding device, high efficiency.
4.Elastic material is brought to steady traction by tensioner during conveying elastic material

Production Process:
Automated feeding - introduction - folding - welding - forming cut

Main Data:
Name:Automatic Nonwoven Bouffant Cap Making Machine
Model:PPD-NBCM180
Material:Nonwoven/PE film
Suitable material width:480mm
Thickness of nonwoven:9-18gram
Thickness of PE film:0.01-0.013mm
Rubber band width:4-5mm (double rubber band)
Speed:,max180pcs/min
Total Power:7.5kw
