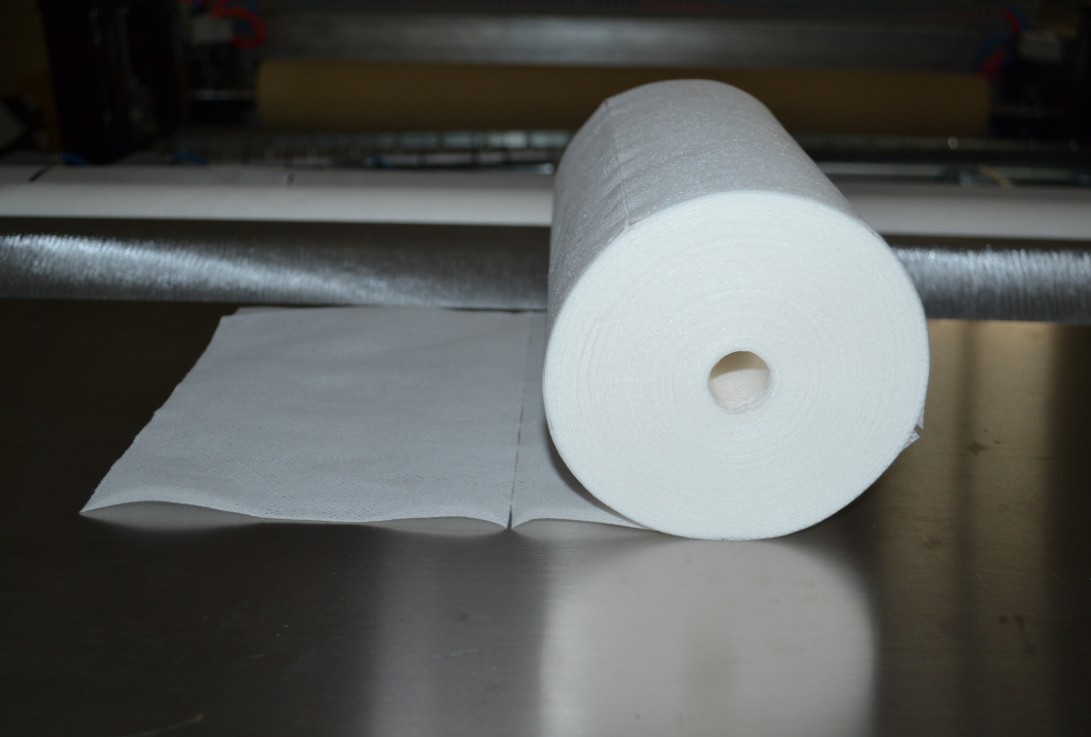

Nonwoven cloth perforation slitting rewinding machine is specialized for slitting rewinding of spunlace nonwoven fabric,PP nonwoven fabric,needle nonwoven fabric with perforation line.
The distance of perforationline can be adjust.

Production Process:
Raw material loading → perforation→slitting rewinding → final product

Features:
1. Automatic correction device.
2. Unwinding tension is adjusted by electromagnetic powder brake and manual tension controller.
3. The unwinding shaft adopts tension and air expansion shaft.
4. The rewinding shaft adopts tension air expansion shaft.
5. Shear-type circular knife slitting mechanism (pneumatic control).
6. Automatic counting device for feeding length.

Main data:

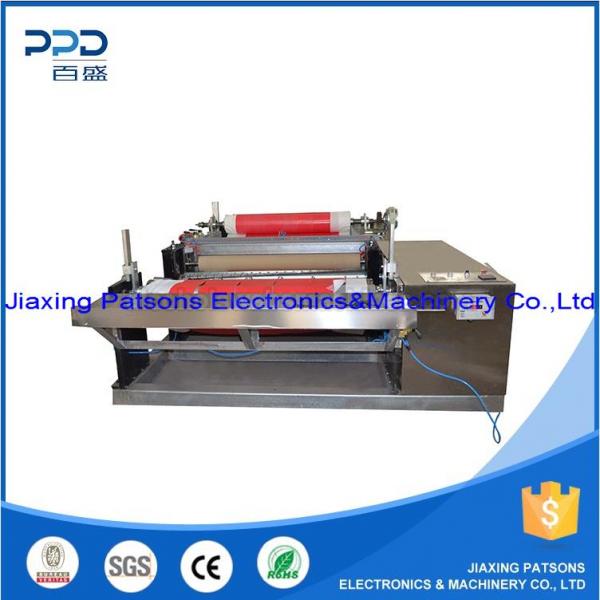

Name: Nonwoven cloth perforation slitting rewinding machine
Model:PPD-NWP1300
Jumbo roll width:1300mm
Applicable raw materials: 35-80g / ㎡ non-woven fabric
Jumbo roll paper core size: 76.2mm
Product roll width：30-1300mm option
Product roll OD:max200mm
Processing capacity: 150 rpm / min
Total power : 4.5 kw
Voltage:380V 50Hz
Machine weight: 1800 kg
Machine dimensions: L: 3800mm × W: 1900mm × H: 1600mm
NOTE:Different sizes can be customized.
