This machine is with sturdy structure with thick frame to enhance the stability of produciton.Machine complies with pneumaitc air shaft for unwind and rewinding for easy unloaidng/loading material and products roll.

It Works with the selected meter counter unit,The magnetic powder clutch break system is with 50N.m for secure the accurate length control.Automatic tensioner system is for good tension control,it can result good glossy/smooth product with right tension.

Machine is multi-functional ideal for slitting and rewinding different non woven,spunlace non woven,PP non woven,PET non woven,viscose non woven etc.

Main data:

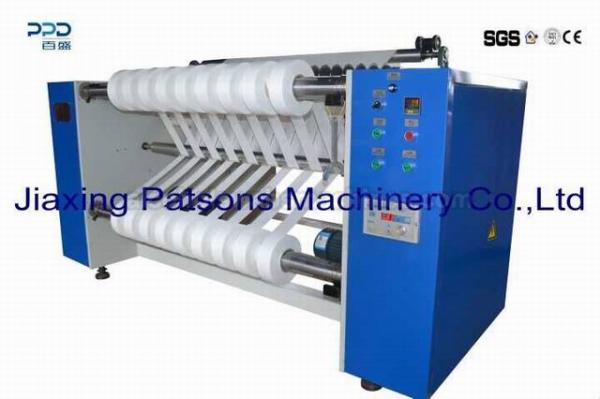

Name:Nonwoven fabrics slitter rewinder machine

Model:PPD-NW1300

Material:nonwoven

Max width of jumbo roll:1300/1800/2500/3500mm

Jumbo roll ID:3'

Jumbon roll OD:1200mm

Slitting roll width:20-max web width

Slitting roll  ID:76mm on request

Slitting roll OD:600/800mm on request

Speed:300m/min

Power:2.8kw

Voltage:220/240/380/415/450v

Frequency:50 or 60Hz

Tips:Any different specification requires,please contact our sales rep for a customize model.
